IMEX I66RX6-KIT ROTATING RED LASER LEVEL STAFF TRIPOD DET

IMEX I66RX6-KIT ROTATING RED LASER LEVEL STAFF TRIPOD DETECTOR

The Imex i66R rotating laser level is ideal for all construction levelling.
The class leader in economical rotating laser levels, the Imex i66R incorporates the robust casing and technology of its big brothers in an efficient simple-to-use package.
Featuring a huge 400m dia range, rubber sheath protection and heavy duty lighthouse cover for superior shockproof and weatherproofing, the i66R is the leader in value for everyday laser levelling.

This laser is supplied with LRX6 detector, 2x 9.0Ah batteries, car charger, USB cable and target plate in a hard carry case, along with a SJA30F tripod and 5 metre staff.

FEATURES:

Robust construction tough horizontal laser level
Self-levelling (electronic) with a 400m range
9Ah Lithium-Ion batteries – approx 40 hours run time
USB quick charge port
Out of level warning light
LRX6 Digital Detector in mm reading German mode
60mm Detector reading fine, medium, coarse setting
30 second set-up time - place on a tripod, press one button and beam begins
Fully enclosed laser housing for extra dust and splash proofing

SPECIFICATIONS:

Self Levelling: ±5°
Accuracy: 2.0mm @ 30m
Working Distance: 400m Diameter
Rotation Speed: 600 rpm
Light Source: 635nm Class II Red Laser Diode
IP Rating: IP66
Power: 9.0Ah 3.7v Lithium-Ion
Detector: LRX6 mm Display
Working Time (Continuous Use): Approx. 40 Hours
Charging Time: 4 Hours
Detector Pick Up: 60mm / +30mm to -30mm
Detector Reading: Fine – 1.0mm / Medium – 2.0mm / Course – 5.0mm
Detector Power: 1-AA > 50 Hours Run
Laser Weight: 2.48 kg

LRX6 RECEIVER

FEATURES:

60mm detection range
Digital display and readout
LED indication
Loud/soft beeper
Increment adjust
Backlit display
IP67 waterproof resistance
Magnetic topface
Supplied with a heavy duty bracket
Sealed battery compartment

SPECIFICATIONS:

Detection Window: 60mm / -30 to +30
Working Range: 300m Radius
Detectable Spectrum: Red & Green Laser
Measurement Accuracy: Fine - 1.0mm / Medium - 2.0mm / Coarse - 5.0mm
Magnets: 2x Topface
Drop Test On Concrete: 1.5m Height
IP Resistance: IP67
Warranty: 3 Years
Weight: 0.5 kg

AXIS 5M STAFF

FEATURES:

5m 5-section aluminium telescopic survey measuring staff
Use for all general levelling and survey work
The rear face is marked in millimeters as a height rod
For use with a laser detector when used with a rotating laser, or a line laser or with an automatic dumpy level
Supplied with storage bag

SPECIFICATIONS:

Material: Aluminium
Length: 5 Metres
Part Numbers: AX-STME5 / 012-IMELS5

SJA30F TRIPOD

This SJA30F (Flat Top) heavy duty aluminium survey tripod is built tough for any site laser / theodolite setup or levelling task with a 5/8" thread. The most popular rotating laser tripod in Imex's range due to its high quality and lightweight design.

FEATURES:

Velcro leg strap & handle
Metal die cast powder coated components
Leg clamp lock
Zero wear sliding legs
Lightweight aluminium profile

SPECIFICATIONS:

Material: Aluminium
Max Height: 1.6 - 1.7 Metres
Thread: 5/8"

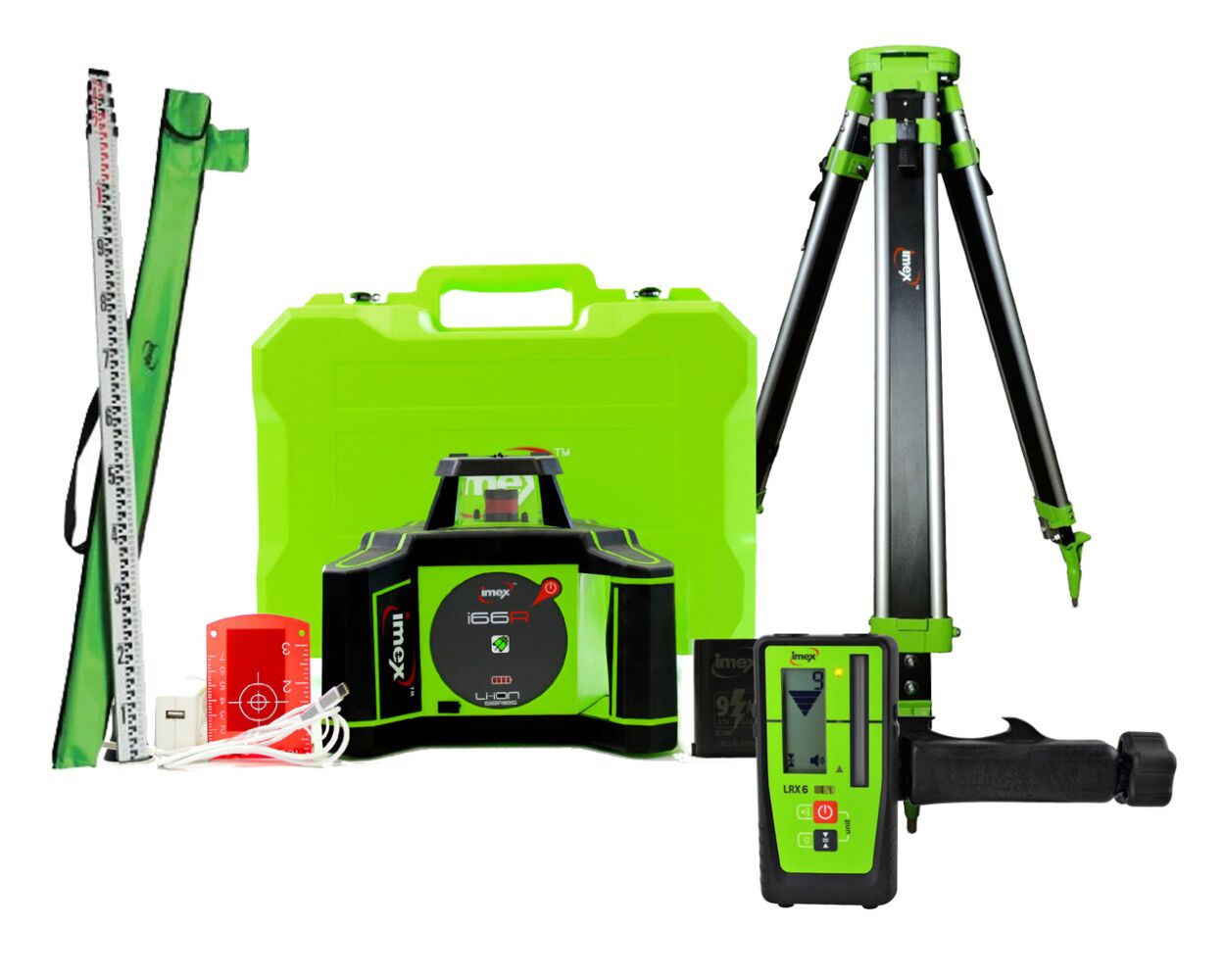

COMES WITH:

1x i66R Rotating Laser
2x 9.0Ah Lithium-Ion Batteries
1x LRX6 Detector
1x SJA30F Tripod
1x 5 Metre Staff
1x USB Cable
1x Car Charger
1x Target Plate
1x Hard Carry Case
