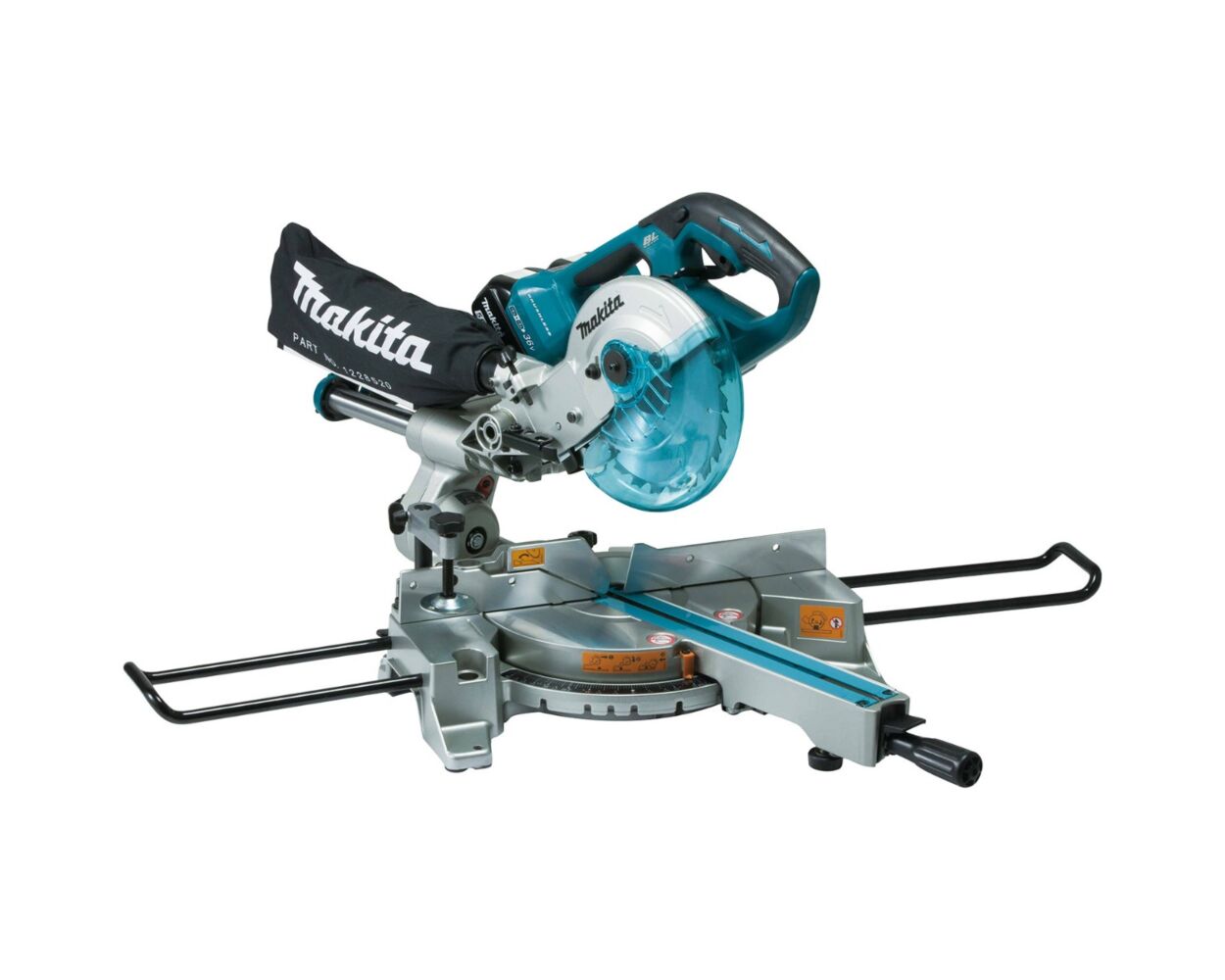

MAKITA DLS714NZ 36V (2X18V) SLIDE COMPOUND MITRE SAW BODY
ECA Expert Says...
The latest addition to Makita’s brushless tool lineup, the cordless Slide Compound Mitre Saw DLS714, is powered by two 18V Li-ion batteries, delivering the performance of a robust 36V DC brushless motor.
Makita DLS714NZ Twin 18v Cordless Brushless Slide Compound 190mm Mitre Saw Body Only
The latest addition to Makita’s brushless tool lineup, the cordless Slide Compound Mitre Saw DLS714, is powered by two 18V Li-ion batteries, delivering the performance of a robust 36V DC brushless motor.
This high-efficiency motor provides cutting power comparable to that of a corded slide compound mitre saw, ensuring fast, precise cuts every time.
Designed with portability in mind, the DLS714 features a lightweight, compact build that makes it easy to transport between job sites and convenient to use in tight spaces.
A standout feature of this model is Makita’s innovative Automatic Torque Drive technology. This system automatically adjusts the cutting speed based on the load, optimizing performance and delivering consistent, high-quality results under varying conditions.
FEATURES:
Automatic Torque Drive automatically changes the cutting speed according to load condition for optimum operation (ie high speed rotation mode for light duties, high torque mode for heavy duties)
Double slide mechanism - 4 self-lubricating linear ball bearings are used for smooth and precise cutting
Easy to Grip handle with anti-slip elastomer surface provides sure but comfortable grip for easy job site portability
Lightweight and compact - The double sliding mechanism makes it lighter and more compact, requiring less work space and allowing quick storing and easy transport to job-sites
LED indicator panel for battery fuel and indication of automatic speed control
Soft start to minimize start-up shock and makes the tool start smoothly
Electric brake stops the blade gently but fast, allowing users to quickly resume operation
Dust bag provided for dust collecting
Powered by two 18v Li-ion batteries in series to supply energy to the powerful 36V DC motor drive system
Brushless motor
Soft start
Equipped with Battery protection circuit: designed to protect the battery from damages due to over-discharge, high temperature or overload current
Cuts up to 300mm in a single pass
SPECIFICATIONS:
Voltage: 18v + 18v (36v)
Battery Type: LXT Lithium-Ion
Blade Diameter: 190 mm
Blade Body Thickness: 1.3 mm - 2.0 mm
Bore (Arbor) Diameter: 20 mm
Max. Mitre Angle: Left 47° / Right 57°
Max. Bevel Angle: Left 45° / Right 5°
No Load Speed: 5,700 rpm
Dimensions (L x W x H): 655 mm x 430 mm x 445 mm
Net Weight (inc Battery): 13.5 kg
COMES WITH:
1 x DLS714 Cordless Mitre Saw Body Only
1 x TCT Saw Blade
1 x Dust Bag
1 x Holder Set
1 x Hex Wrench
1 x Vertical Vice
1 x Triangular Rule
