TREND KWJ700 WORKTOP JIG TRADESMAN 700MM

£80.50 £67.08
SKU
PAWA700

ECA Expert Says...

Ideal for kitchen fitters, and can be set up and cut both parts of the joint in under 15 mins.

PAWA700

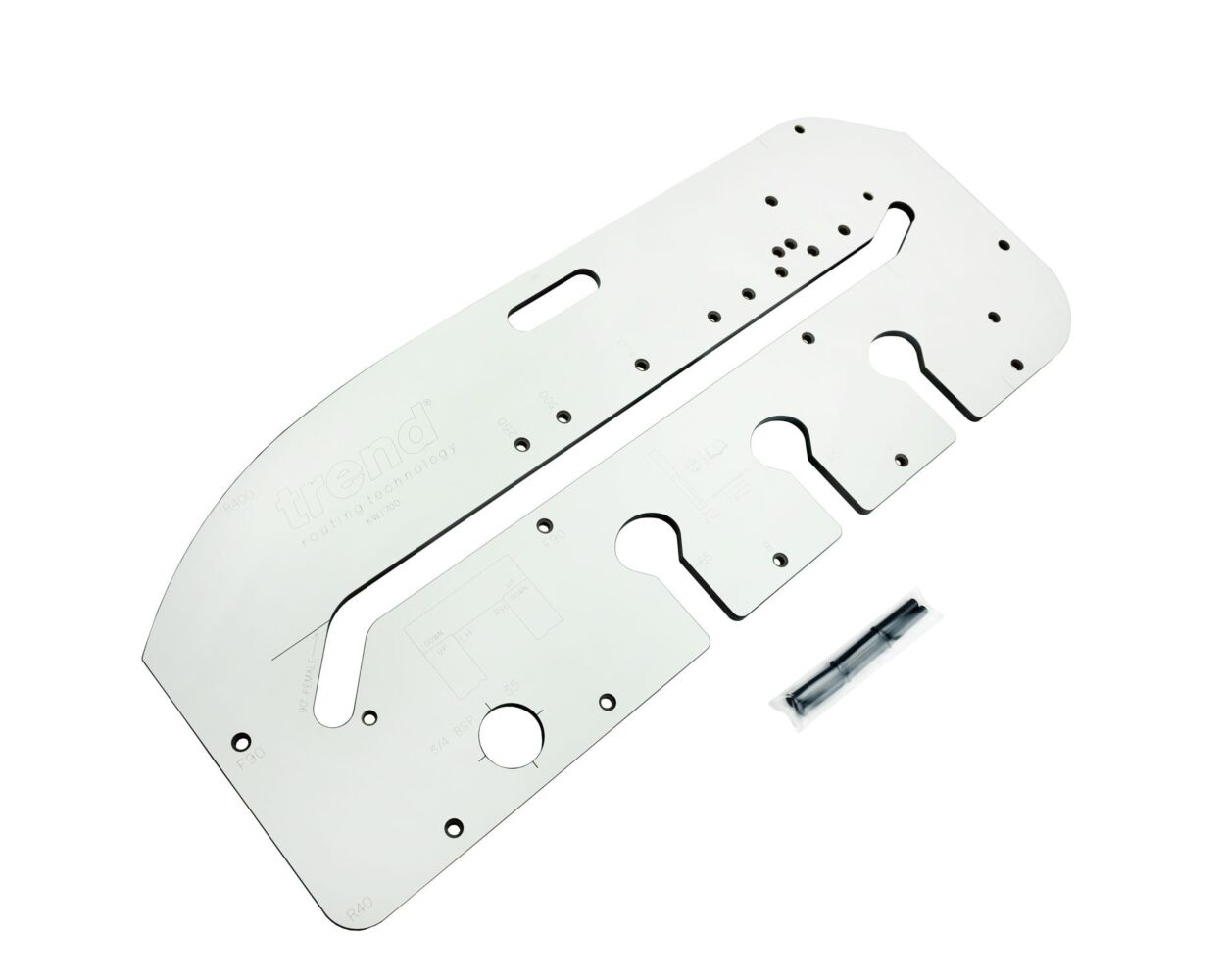

Trend Tradesman KWJ700 Worktop Jig

The trend KWJ700 is a trade work top jig for up to 700mm worktops. This piece of kit is a hard-wearing solid laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up. Left hand and right-hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.



Features and benefits:

Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops.

Cuts up to 40mm thick worktops with or without anti-drip post formed edge.

Three open-ended bolt recesses (dog bone style) for 150mm bolts.

Engraved lines for short 65mm bolts and worktop cross-cut.

10mm diameter plastic pins with tapered shoulder for tight fit provides three-point pin contact to ensure ease of setting up.

Engraved markings for identification of pin holes.

Pins made from ABS plastic for strength.



Jig requires:

A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.

A template guide bush with 30mm outside diameter ref. GB30.

A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.

Two clamps.



Specification:

Length – 985 mm

Width – 390 mm

Thickness – 12 mm

Weight – 5.4 kg

End Cut – 45 degrees

Corner Radius – 40 mm

Corner Radius – 100 mm

Corner Radius – 400 mm

Corner Mitre Joint – 45 degrees

Female Cut Material Width Loss – 35 mm



Supplied with:

Six ABS plastic pins
